AG-205
Industrial router with
dual Ethernet and WiFi
Coming Soon!
- Dual Ethernet and WiFi
- VPN support
- OpenWRT system
AG-205 is an industrial router with two Ethernet ports and WiFi dedicated to securely connecting devices to the network. With VPN support, it enables secure remote management of PLCs and other industrial devices. The router supports such protocols as Modbus TCP, Bacnet and many others. It runs under the OpenWRT system and also allows you to write your own scripts.

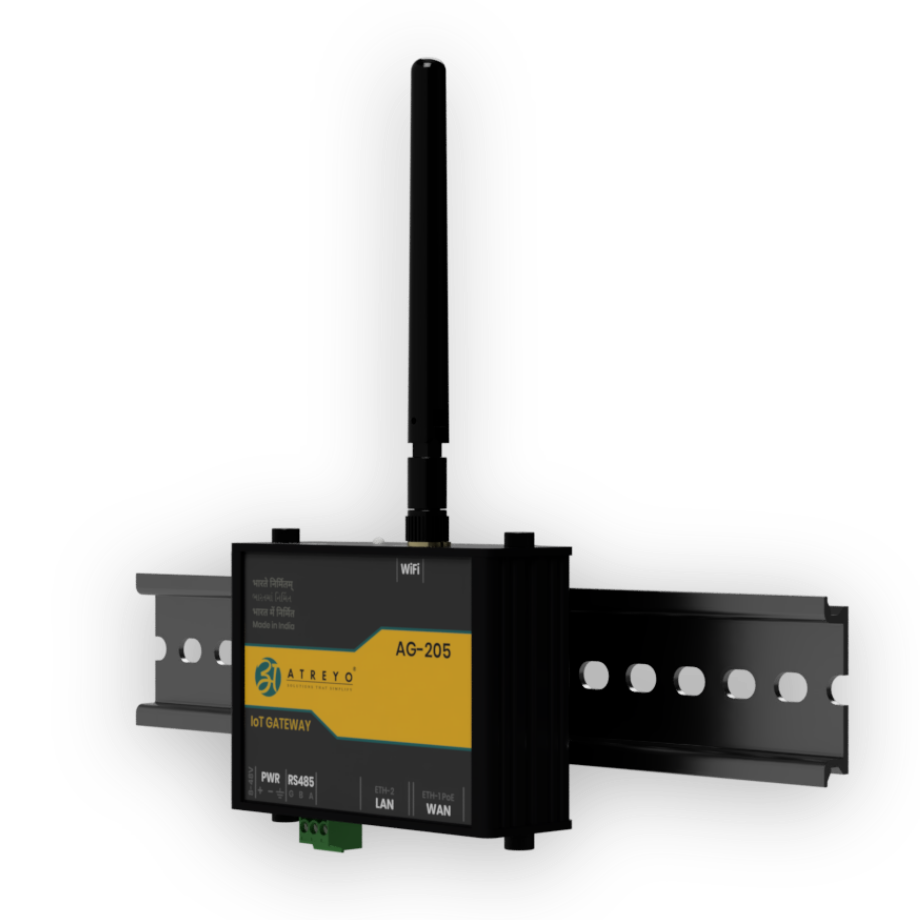

It has an aluminium enclosure and is mounted on DIN rail. A wide range of supply voltages up to 48V enables a wide range of applications.
| CPU | 580MHz MIPS 24KEc processor |
| Storage | 64MB |
| Memory | 128MB RAM (256MB optional) |
| Antenna Connectors | 1 x SMA for WiFi |
| Ethernet | 2 x 10/100 Ethernet with passive PoE |
| WiFi | IEEE 802.11b/g/n with hotspot function |
| Status Indicators | 1 x activity, 1 x WiFi |
| Power supply | 8-48V DC with reverse polarity protection, PoE (spare pair) |
| Operating temperature | -20 °C to 65 °C |
| Housing | Aluminium housing with DIN rail mounting option |
| Dimensions | 88mm x 65mm x 35mm |
| Weight | 220g |
| Operating system | OpenWRT 23.05, Kernel 5.15.71, Atreyo Environment V1.01.07 |
| Programming language | Lazarus, C, C++, java, php, html, python, sql etc. |
| Network protocol suppport | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN and tunneling | OpenVPN, OpenConnect, IPsec, PPTP, SoftEther VPN, WireGuard |
| Configuration and management | WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT(S), MODBUS, RMS |
| Cloud solutions | All supported by Linux for MIPS architecture |
| Modbus | TCP slave, TCP master, RTU master, RTU gateway |
| Serial | Console, Over IP, Modem, NTRIP |
These product will soon be available. Please contact us if you have any questions.
