AG-1115

CCMS customised gateway
with LTE and dual SIM

Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
Customised Gateway AG-1115
  • 2 independent relay outputs
  • Isolated RS485, and 4 digital inputs and analog input
  • Dual SIM, 230V AC detection input

AG-1115 is a cost effective gateway for users who requires LTE gateway for their custom application. The gateway has opto-isolated RS485, digital inputs and outputs, one analog input and LTE/GPRS communication. Also has built-in GNSS with active antenna capability. Gateway software is created according to specific customer requirements. Contact Atreyo for development.

LTEGPRSdual-SIMGNSSRS485-optoisolatedUSB-devicebatteryinput-42-outputrelayopto-isolatedSD-card8-36VDCsmart-citymodbusreal-time-data
AG-1115 application diagram

Applications

This gateway is designed for power grid management systems. It can also be successfully used for remote monitoring of street lighting, water supply infrastructure and various types of machinery.

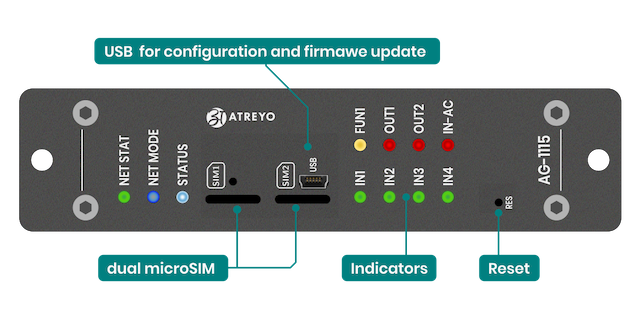

The gateway has all the controls and the SIM on the front. There is also a socket on the front with a port for diagnostics and a USB for uploading updates. It is adapted for panel mounting. You can also order versions for DIN rail mounting.

AG-1115 front panel
AG-1115 interfaces

Interfaces

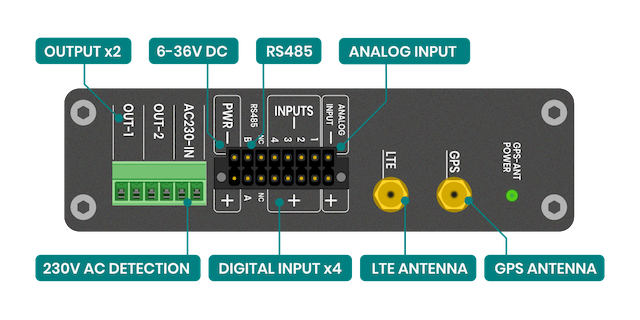

The gateway also has multiple wired interfaces. Including line voltage detection, an isolated RS485 interface with Modbus RTU support. Analog input and 4 digital inputs. In addition, it provides control of two independent relays.

CPUARM  processor 500Mhz
Storage64 MB and optional microSD card
Memory128MB RAM
Cellular4G LTE, GPRS
SIM2 x microSIM
Antenna Connectors1 x SMA for cellular, 1 x SMA for GNSS
GNSSGPS, BDS, Galileo, GLONASS, QZSS
Serial1 x opto-isolated RS485
Input/output4 x isolated digital Inputs, 1 x 230V sensing digital input, 1 x analog input, 2 x relay digital output
OtherUSB for system update
Status Indicators5 x digital input, 1 x activity, 1 x power, 2 x output, 1 x LTE, 1 x antive antenna enable
Power8-36V DC with reverse polarity protection
Power backupSuperCAP backup for last message or long time battery backup (depend on customer requirement)
Operating temperature-20 °C to 75 °C
HousingAluminium housing with DIN rail or panel mounting option
Dimensions135mm x 75mm x 38mm
Weight360g (models without backup option)
Operating systemEmbedded system
Network protocolsAll functions are designed according to customer needs
SMS FunctionsAccording to customer requirement
System updateUSB, over the air (OTA)

You can order our products online or send an individual inquiry. Please specify a specific model in your inquiry. Some models/products are only available on special order.

Model SelectionCellular NetworkSuper cap backupbattery backup
GPRSLTE
AG-1115√√  Enquiry
AG-1115-BAT√√ √Enquiry
AG-1115-SC√√√ Enquiry
