AIC-550

High-Performance Linux Industrial Computer

Coming Soon!
  • 4 core 64 bit processor, 2/4/8GB RAM
  • SSD, 4G LTE, GPRS, WiFi, BT, RS485, CAN, two GB Ethernet
  • Compact aluminium design, fanless cooling

The AIC-550 is multipurpose Industrial Computer with inbuilt M.2 SSD storage for data. It is based on quad core ARM Cortex-A55 64bit processor. The computer has 4G LTE/GPRS or 5G cellular modem and optional WiFi or Bluetooth.
This computer in addition to industrial use, due audio out it can be used as a media and video controller in vehicles and

5G LTE GPRS 3Gdual-SIMGNSSWiFiBluetoothdual-EthernetRS485-optoisolatedModbusCAN-optoisolatedHDMIdual-USBUSB-C-debugUSB-3.0-hostSD-cardM.2 SSDRTC-clocktemperature-sensoraudio-in-outinput-18-48VDCLinuxsmart-city

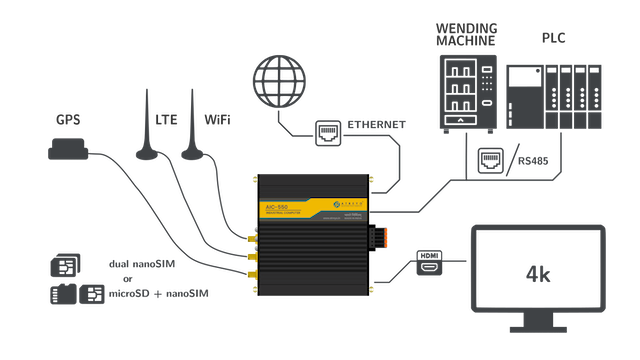

AIC-550 application diagram

Applications

  • Remote monitoring, PLCs controlling, machine control, data logger
  • Kiosk controller, information display controller, video wall controller etc.


Wireless Interfaces

Communication options:

  • Cellular 5G, 4G LTE, 3G, GPRS
  • WiFi + Bluetooth
  • Dual SIM card
  • GNSS

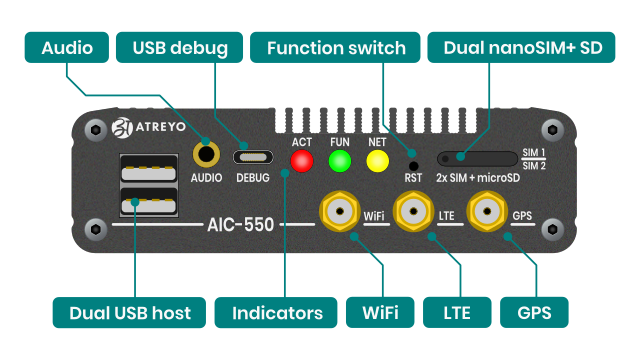

AIC-550 connectors top

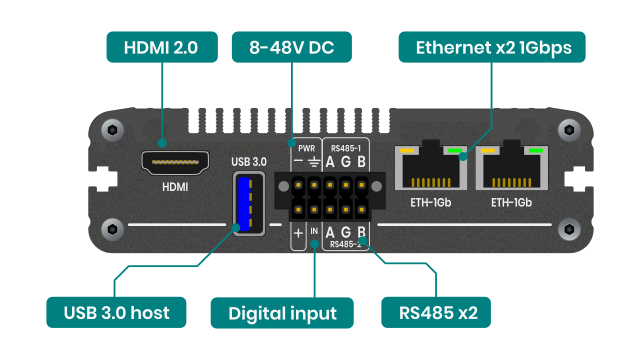

AIC-550 connectors bottom

Wired Interfaces

The computer not only has two high-speed Ethernet interfaces, but also two optically isolated RS-485 interfaces and, optionally, an optically isolated CAN interface. The HDMI output supports 4K resolution. You can connect an additional external high-speed drive to the USB 3.0 port.

Debian Linux system

Supports all Linux based network  protocols and cloud solutions. Thanks to this, very quickly your programmers will prepare the appropriate software that will perfectly meet the requirements.

AIC-550 Linux languagaes
CPUQuad core 64-bit ARM Cortex-A55 processor, 1.8GHz
Storage32/64/128GB eMMC, internal SSD on M.2
Memory2/4/8GB RAM
Cellular4G LTE, GPRS (5G optional)
SIMDual nanoSIM
Antenna connectors1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi and Bluetooth
Ethernet2 x 10/100/1000 Ethernet port
GNSSGPS, BDS, Galileo, GLONASS, QZSS
WiFi802.11a/b/g/n/ac/ax (2.4GHz and 5GHz band) (optional)
BluetoothBT 5.0, 3Mbps, BR/EDR: 79 channels (optional)
Serial2 x RS485 isolated
Other2 x USB 2.0, 1 x USB 3.0, 1 x HDMI with 4K display support
Status indicators1 x activity, 2 x user configurable RGB LED
Power supply12-48V DC with reverse polarity protection
Operating temperature-20 °C to 75 °C
HousingAluminium housing
Dimensions114mm x 32mm x 104mm
WeightTBD
Operating systemDebian Linux
Programming languageAll supported by Linux
Network protocol suppportAll supported by Linux
VPN and tunnelingAll supported by Linux
Connection monitoringAll supported by Linux
Cloud solutionsAll supported by Linux

Please contact us to place an order - Contact us

Online documentation
The documentation page provides detailed product specifications and complete instructions for use. Please read it before using the product.
Downloads
Technical Specification
