- Obsługa wielu kanałów LoRa WAN™
- Łączność LTE, GPS, GPRS, WiFi Ethernet
- Aluminiowa obudowa odporna na wszelkie warunki atmosferyczne

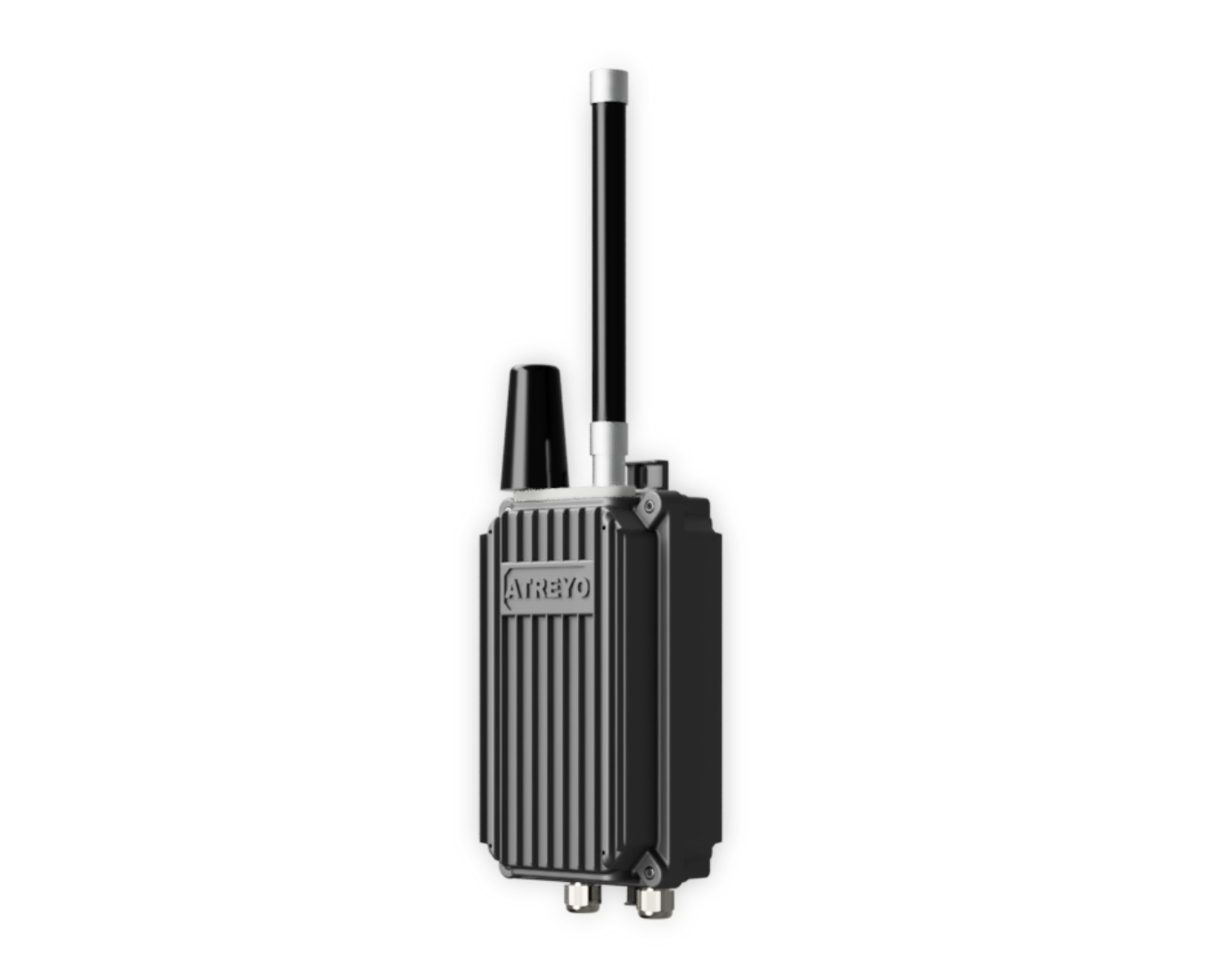

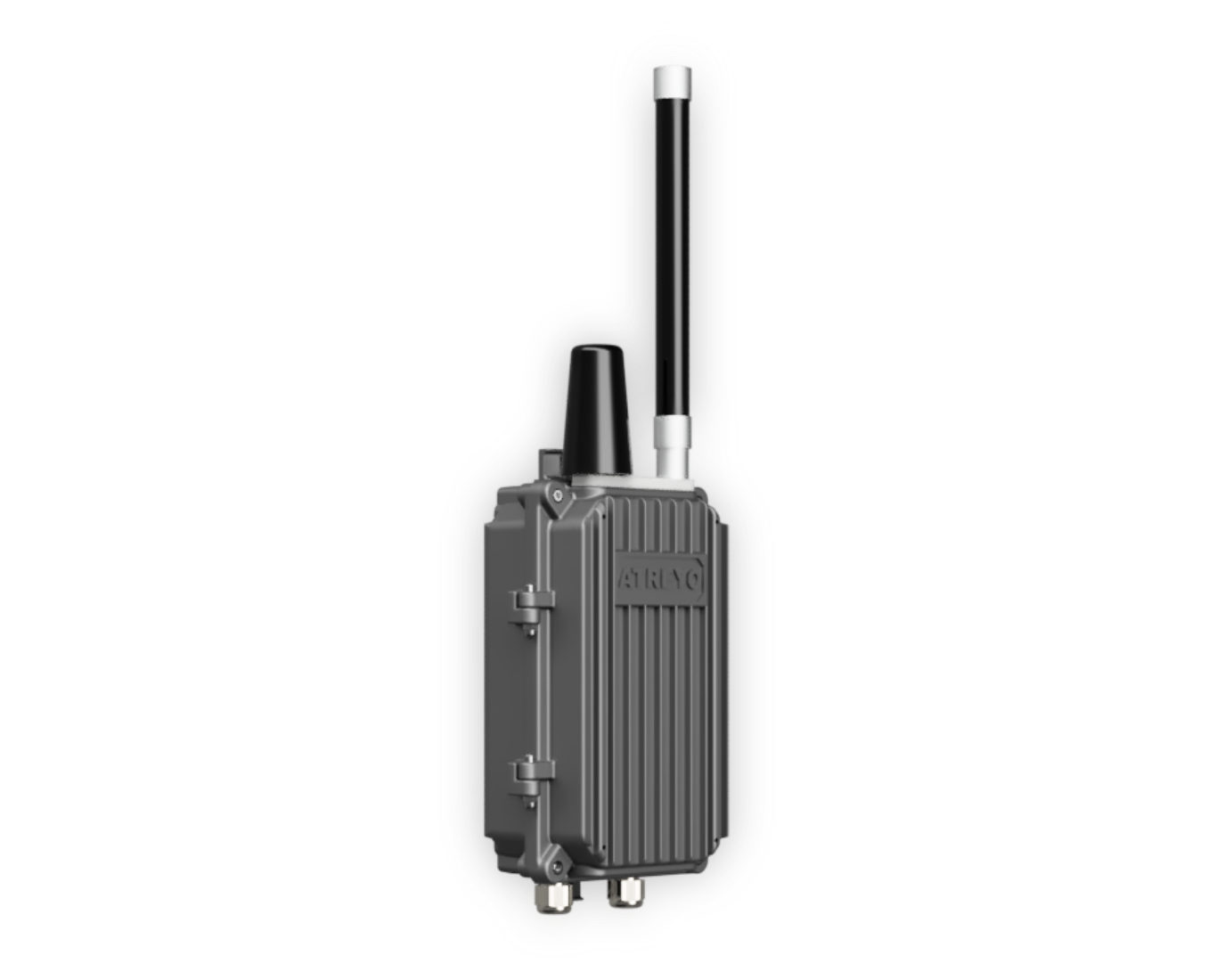

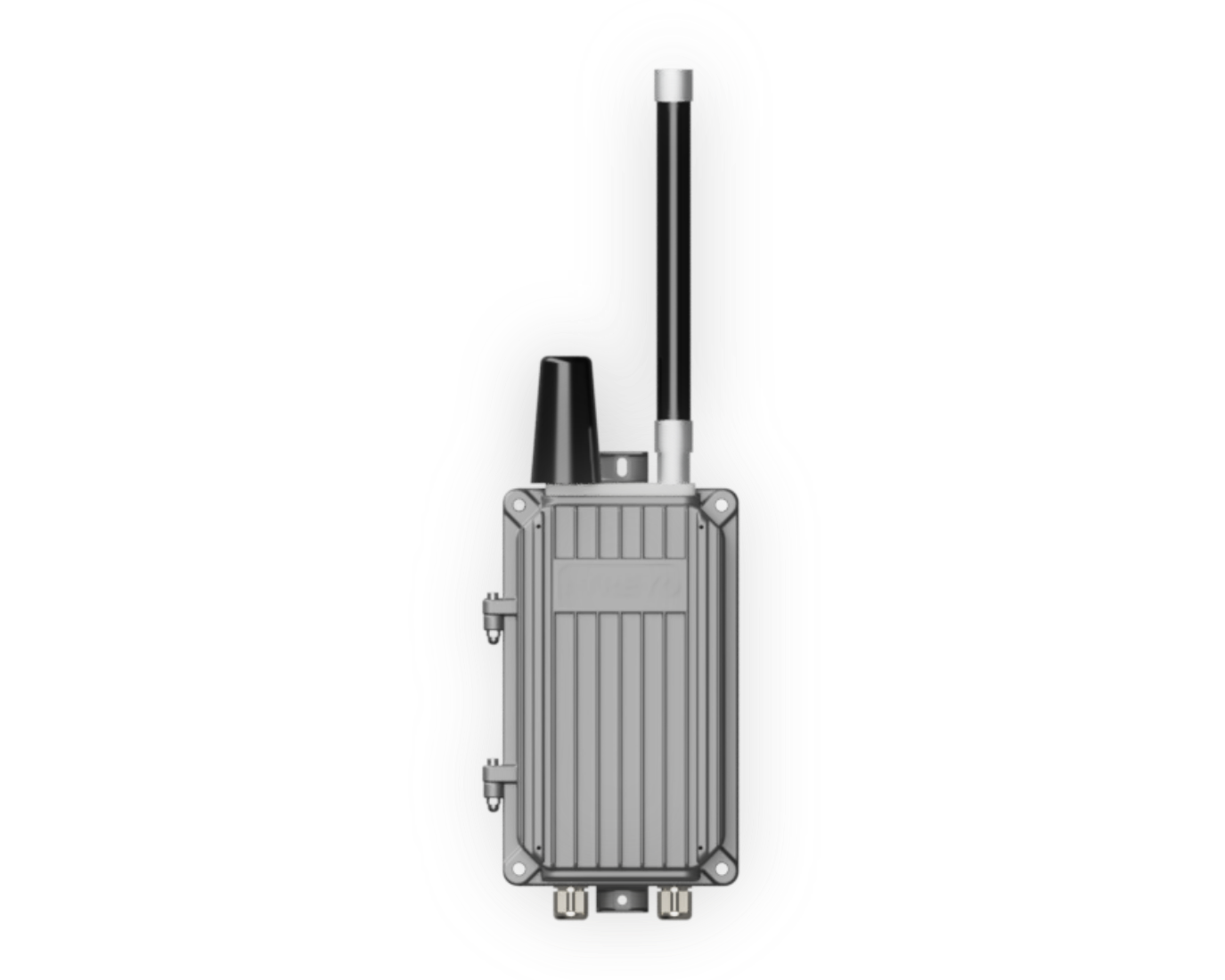

Wielokanałowa brama zewnętrzna LoRa WAN™ z procesorem ARM Cortex-7 i aluminiową obudową odporną na trudne warunki środowiskowe. Zasilany od 90V do 500V AC z 1 z 2 lub 3 fazami. Posiada również awaryjne zasilanie bateryjne. Do profesjonalnych aplikacji sieciowych LoRa WAN i przemysłowych systemów sterowania.
| CPU | 4 Core ARM A7 processor |
| Storage | 8GB eMMC + microSD (optional eMMC 16/32GB) |
| LoRa WAN | LoRa demodulators x49, Up to 10 parallel demodulation paths, Uplinks channels 8 |
| LoRa WAN RF | TX power up to 27 dBm, RX sensitivity down to -139 dBm |
| Mobile - cellular | LTE, GSM |
| SIM | 2 x microSIM |
| Antenna connector | 1 x N-type for LoRa. LTE,GNSS, WiFi combo not removable |
| Antenna | High gain fiber antenna for LoRa, Combo antenna for GPS and mobile network |
| Ethernet | 2 x 10/100 Ethernet port (one inside of the housing) |
| GNSS | GPS, BAIDOU (optional other GNSS providers) |
| WiFi | IEEE 802.11b/g/n (optional) |
| Other interfaces | 2 x USB, 1 x HDMI (inside of the housing) |
| Status indicators | 4 x signal strength, 1 x WiFi, 3 x connectivity, 1 x activity, 1 x multufunction |
| Power | 1, 2 or 3 phase 230V AC or 90-500V AC |
| Power backup | Internal 3h battery backup (optional 6h battery) |
| Operating temperature | -25 °C to 75 °C |
| Housing | Aluminium housing resistant to all weather conditions |
| Dimensions (W x H x D) | 260×150×100mm (without antennas) |
| Weight |
| Operating system | Rassberian, Debian, Yokto Linux |
| Programming language | Python, C, C++, HTML5, Java, Perl, Erlang, Ruby etc. |
| Network protocol suppport | All supported by Linux |
| VPN and tunneling | All supported by Linux |
| Connection monitoring | All supported by Linux |
| Cloud solutions | All supported by Linux |
