AG-1629


Programmable IoT gateway
with Quad core ARM processor


  • Linux operating system.
  • Dual Ethernet, Dual isolated RS485
  • Dual SIM, WiFi, LTE, Bluetooth and digital inputs and outputs
  • Small size, silent cooling

Programmable industrial IoT Gateway with support for Debian Linux and OpenWRT Linux systems.  It provides the ability to install custom scripts and use ready-made scripts. Also, it works under the control of OpenWRT system. Under the control of the NodeRED system, it gives unlimited possibilities for easy creation of gateway operation logic. It also has an cellular modem with support for 2 SIM cards. It has two LAN, to isolated RS485 interfaces and four opto-isolated I/Os.


LTEGPRS3Gdual-SIMGNSSWiFI-hotspotWiFiPoE-ethernetdual-ethernetRS485-optoisolateddual-USBbluetoothconfig-wwwinput-44-outputopto-isolatedSD-cardlinuxVPNsmart-citymodbusredundantreal-time-datacloud-ready

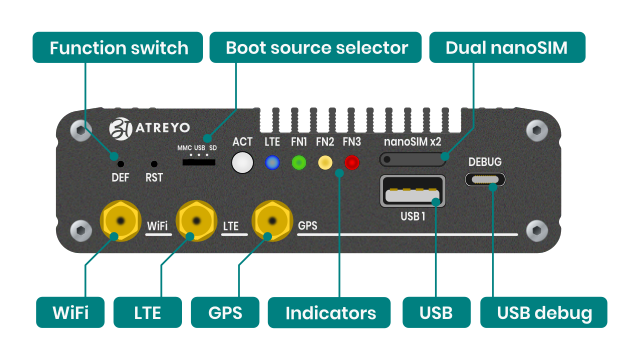

AG-1629 interfaces top side

Lots of functions

The gateway is richly equipped with the necessary interfaces. It also has indicators that the user can program according to his or her preference and an invaluable USB-C for debugging. The boot mode switch allows you to boot from eMMC, microSD or USB.


Digital interfaces

On the bottom or back side there are 2x RJ45 and a 16-pin socket with 2x RS485 obviously opto-isolated. The gateway has besides 2 USB and two SIM cards. You could say it's a dual gateway.

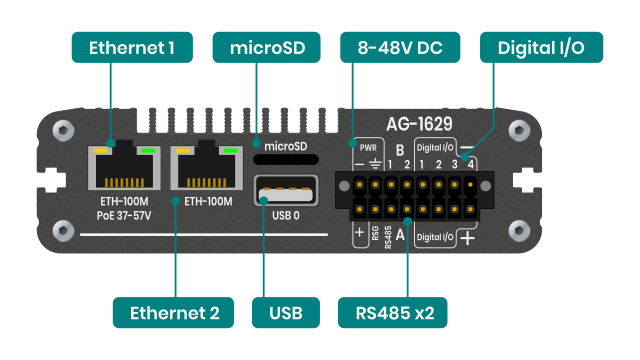

AG-1629 interfaces bottom side


CPUQuad Core ARM Cortex-A7 processor
Storage8/16/32/64 GB eMMC, up to 256 GB microSD
Memory512MB RAM
CellularLTE, GPRS
SIMDual nanoSIM
Antenna Connectors1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi/Bluetooth
Ethernet2 x 10/100 Ethernet port
GNSSGPS, BDS, Galileo, GLONASS, QZSS
WiFiIEEE 802.11b/g/n (refer datasheet)
BluetoothV5.0+EDR
SerialDual opto-isolated RS485
Input/output4 x opto-isolated digital Inputs, 4 x digital opto-isolated output (interchangable with inputs)
Other2 x USB 2.0 host
Status Indicators4 x custom, 1 x cellular, 1 x activity
Power7-48V DC with reverse polarity protection, PoE 37-57V isolated (optional)
Operating temperature-20 °C to 75 °C (extended to -40 to 85°C avalable)
HousingAluminium housing with DIN rail mounting option
Dimensions114 x 104 x 32mm
Weight

Operating systemDebian Linux
Programming languageAll supported by Linux
Network protocol suppportAll supported by Linux
VPN and tunnelingAll supported by Linux
Connection monitoringAll supported by Linux
Cloud solutionsAll supported by Linux
