AG-3303

Programmable IoT gateway
with Quad core ARM processor

Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
Programmable IoT Gateway with Quad core ARM processor
  • Linux operating system.

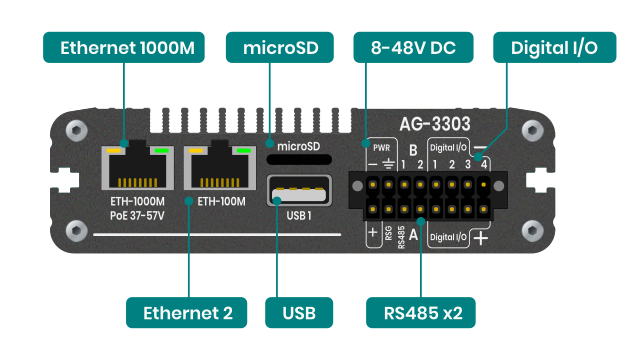

  • Dual Ethernet, dual isolated RS485

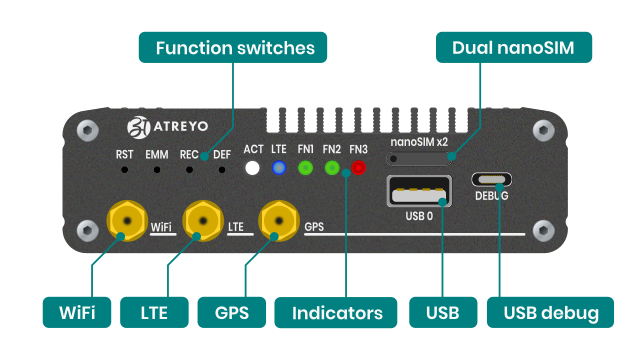

  • Dual SIM, WiFi, LTE, Bluetooth and digital inputs and outputs
  • Small size, silent cooling

Programmable industrial IoT Gateway with support for Debian Linux and OpenWRT Linux systems.  It provides the ability to install custom scripts and use ready-made scripts. Also, it works under the control of OpenWRT system. Under the control of the NodeRED system, it gives unlimited possibilities for easy creation of gateway operation logic. It also has an cellular modem with support for 2 SIM cards. It has two LAN, to isolated RS485 interfaces and four opto-isolated I/Os.

LTEGPRS3Gdual-SIMGNSSWiFI-hotspotWiFiPoE-ethernetdual-ethernetRS485-optoisolateddual-USBbluetoothconfig-wwwinput-44-outputopto-isolatedSD-cardlinuxVPNsmart-citymodbusreal-time-datacloud-ready
CPUQuad core 64-bit ARM Cortex-A53 processor, 1.5GHz
Storage8/16/32/64 GB eMMC, up to 256 GB microSD
Memory1GB/1GB/4GB RAM
CellularLTE, 3G, GPRS
SIMDual nanoSIM
Antenna Connectors1 x SMA for cellular, 1 x SMA for GPS, 1 x SMA for WiFi/Bluetooth
Ethernet1 x 10/100M and 1 x 10/100/1000M
GNSSGPS, BDS, Galileo, GLONASS, QZSS
WiFiIEEE 802.11b/g/n (refer datasheet)
BluetoothV5.0+EDR
SerialDual opto-isolated RS485
Input/output4 x opto-isolated digital Inputs, 4 x digital opto-isolated output
Other2 x USB 2.0 host
Status Indicators4 x custom, 1 x cellular, 1 x activity
Power7-48V DC with reverse polarity protection, PoE 37-57V isolated (optional)
Operating temperature-20 °C to 75 °C (extended to -40 to 85°C avalable)
HousingAluminium housing with DIN rail mounting option
Dimensions114 x 104 x 32mm
Weight
Operating systemDebian Linux, OpenWRT
Programming languageAll supported by Linux
Network protocol suppportAll supported by Linux
VPN and tunnelingAll supported by Linux
Connection monitoringAll supported by Linux
Cloud solutionsAll supported by Linux

Please contact us to place an order - Contact us

  • Online documentation
    The documentation page provides detailed product specifications and complete instructions for use. Please read it before using the product.
