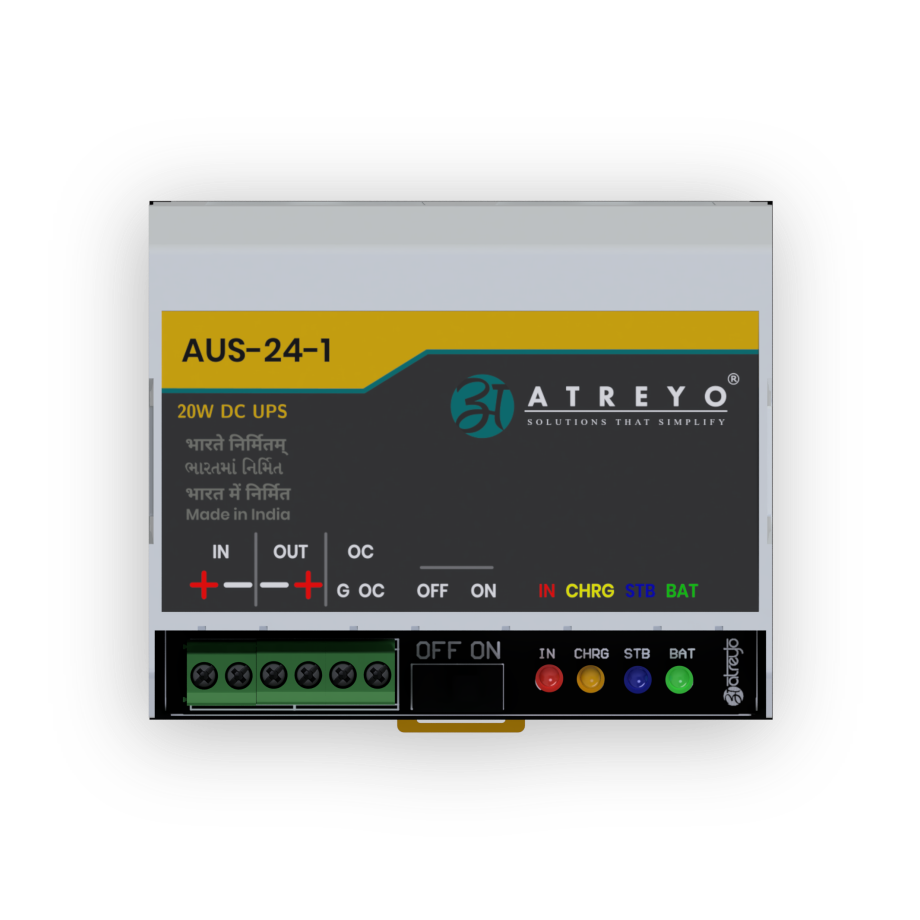

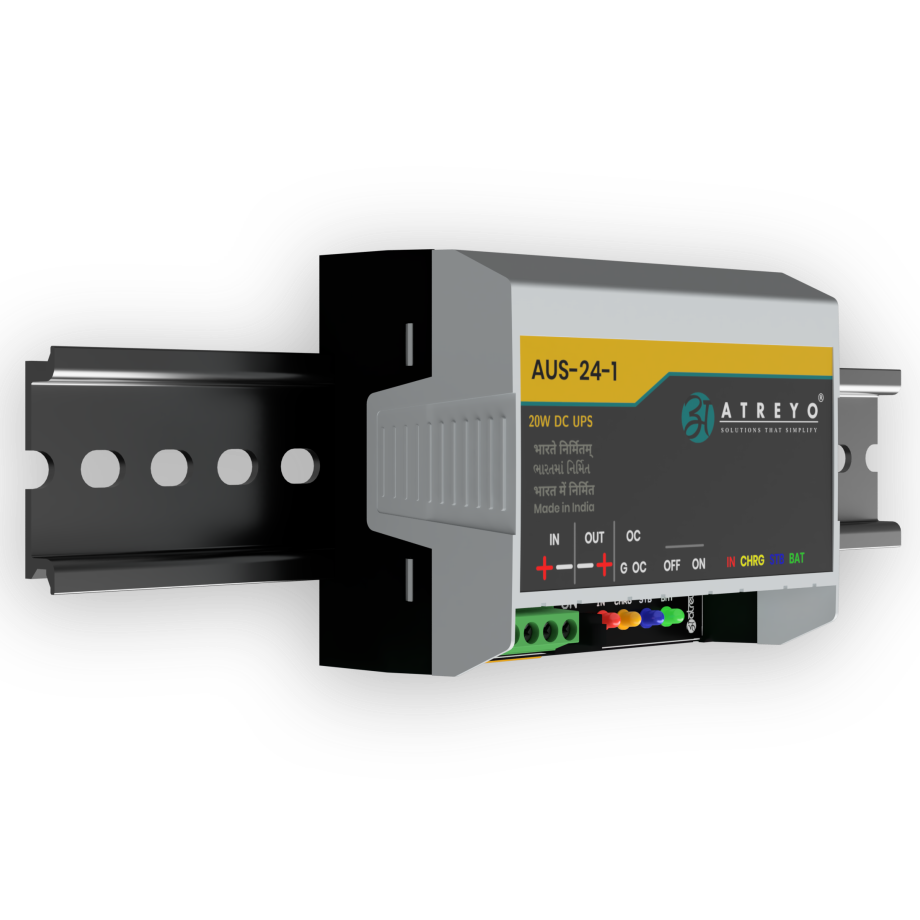

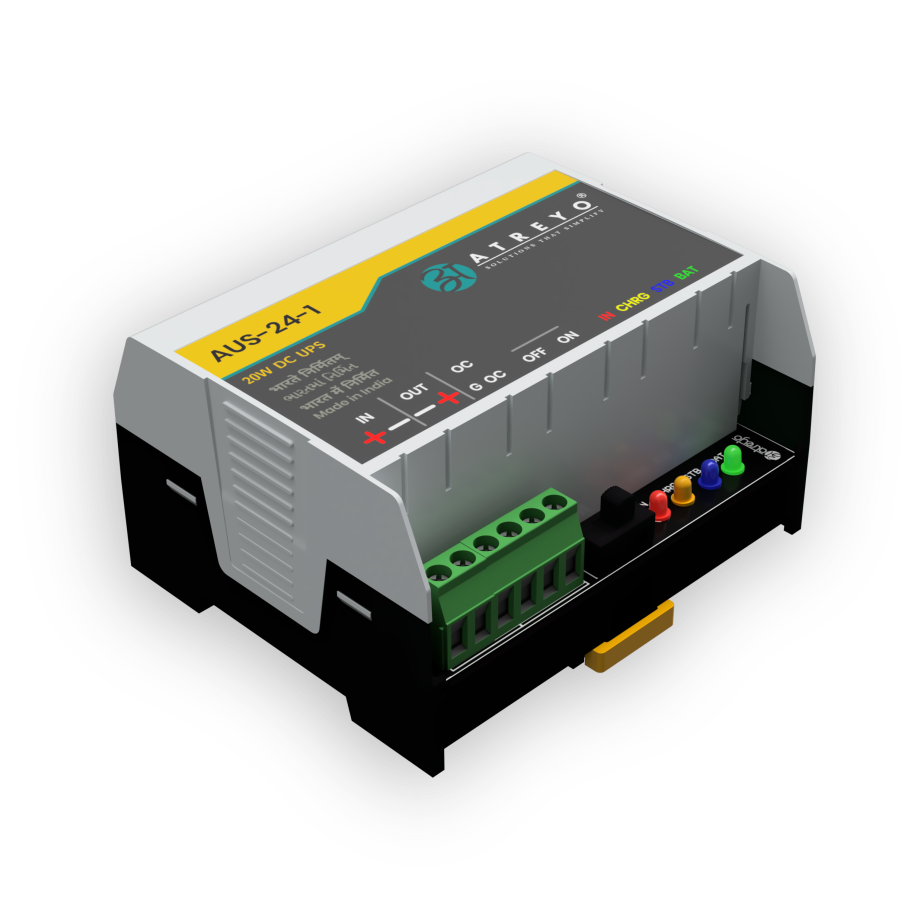

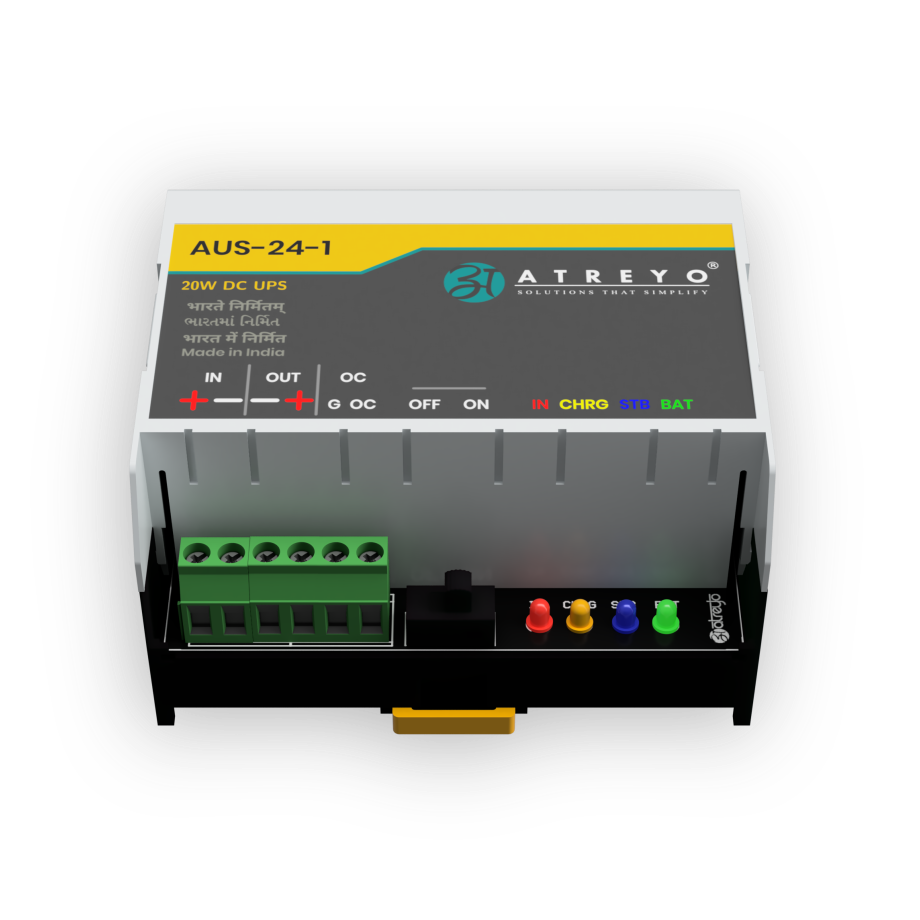

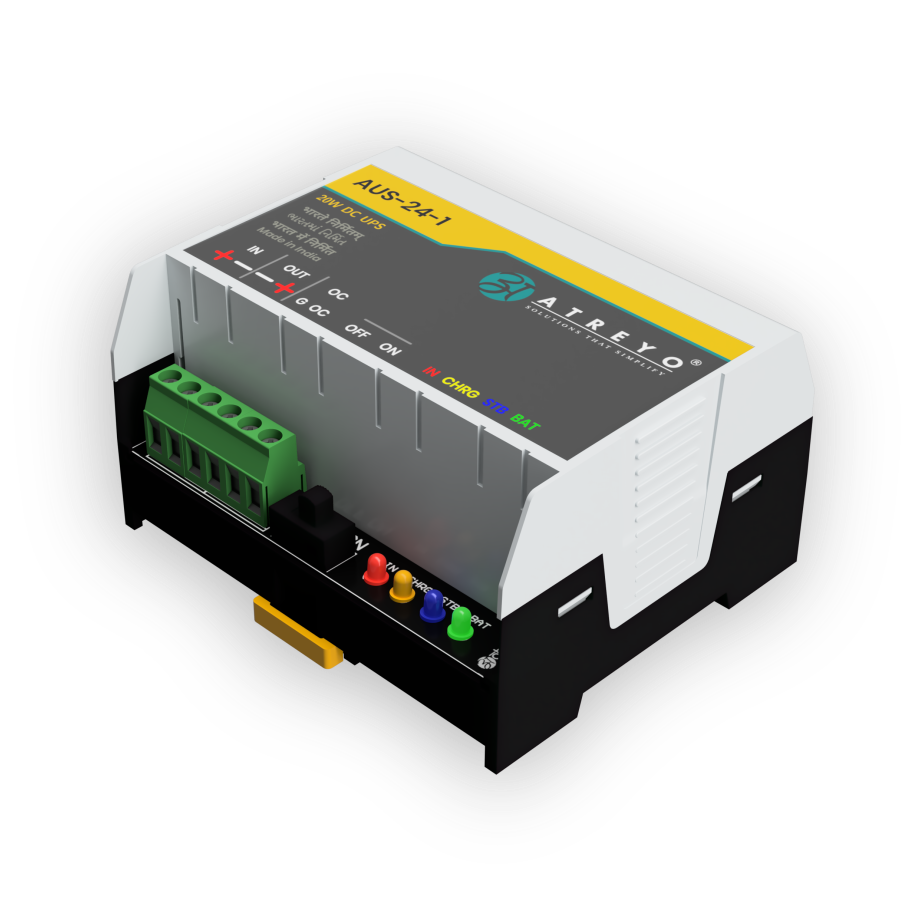

AUS-24-1
24V DC uninterruptible power supply
with built-in battery
Coming Soon!
- 24V in ad 24V out
- Built-in rechargeable batteries
- Over Voltage and overload protections
The AUS-24-1 is a DC UPS designed to safely power IoT devices such as gateways, routers, Ethernet switches and data loggers. It has built-in two 18650 cells and charge control with protection against over-temperature, over-charging and over-discharge. It features a high efficiency boost converter with short circuit protection.
| Input Voltage | 12-26V DC |
| Output Voltage | 24V DC |
| Output power | 20W, peak 40W |
| Battery | Li-Ion 18650 x 2 |
| Battery capacity | 2500mA (7.4V) |
| Power switch | Slide switch completely cutting off the battery |
| Extra features | Additional open collector output which indicates battery operation |
| Short circuit protection | Over temperature, under voltage, over current, short and output fuse |
| Status indicators | IN, CHRG, STB, BAT |
| Operating temperature | 0 ~ 50°C (32 ~ 122°F) |
| Housing | ABS |
| Dimensions | 90mm x 75mm x 50mm |
| Weight | Without batteries 100g, With batteries 190g |
The power supply provides stable and uninterrupted power to IoT gateways, routers and network equipment.
Please contact us to place an order - Contact us
