AM-201


Industrial 4G LTE Modem
with RS232, RS485 and USB


  • 4G LTE/GPRS and SMS support and main and DIV antenna
  • USB, RS232, RS485 data communication to host
  • Aluminium enclosure with DIN rail mounting

This is 4G LTE cat1 modem for use in industrial environment. It communicate to host by USB, RS485 and RS23. For use in IoT systems, industrial control systems, electrical panels and distribution systems, public display controllers, remote monitoring for agriculture, industry and IoT.


cloud-readyGNSSGPRSLTEreal-time-dataRS232RS485smart-cityUSB-device

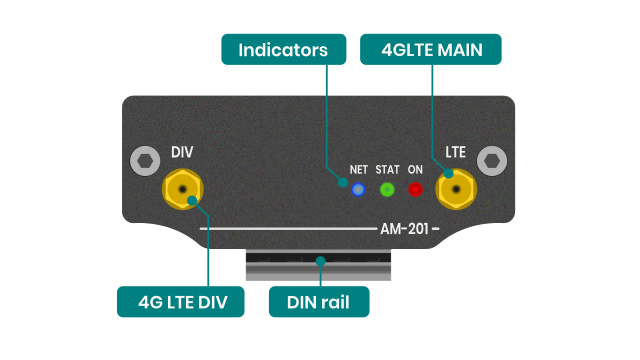

AM-201 antenna conectors

Dual antenna

Supports 4G LTE and also has a diversity antenna. Simplicity and reliability are the most important features of this modem.


The modem can not only be operated via USB, but also via RS485 and RS232. It can be used with operating system computers, PLCs and other ambedded devices.

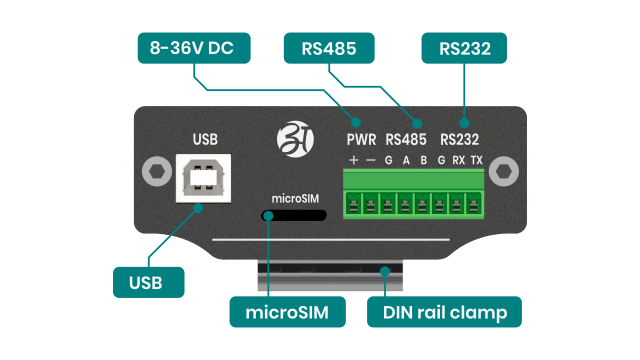

AM-201 USB serial interfaces



Band LTE FTDB1/B3/B5/B8
Bands LTE TDDB34/B38/B39/B40/B41
Bands WCDMAB1/B5/B8
Bands
GSM/EDGE
B3/B8
SIMMicroSIM
Antenna Connectors1 x SMA for mobile, 1 x SMA for diversional
Connection to hostUSB 2.0, RS485, RS232
Status Indicators1 x ON, 1 x ACT, 1 xLTE
Power12-36V DC with reverse polarity protection
Operating temperature-20 °C to 75 °C
HousingAluminium housing with DIN rail mounting option
Dimensions (W x H x D)88mm x 35mm x 65mm
Weight190g

Operating system by USBLinux, Windows 10/11
Operating system by serialAny system with serial interface and commands support

ModelCellular NetworkGNSS
GPRS3GLTE
AM-201-IN  Enquiry
AM-201-EU  Enquiry
AM-201-GL Enquiry
AM-201-IN-GP Enquiry
AM-201-EU-GP Enquiry
AM-201-GL-GPEnquiry

Online documentation
The documentation page provides detailed product specifications and complete instructions for use. Please read it before using the product.
